Architecture

This page describes the internal shape of PaloNexus’s authorization decision service — the component that answers, for every governed action, may this agent do this, on whose authority, right now? It is implemented as one Go binary (the component is named the control plane) that every request ultimately consults. First the decision spine and its invariants; then the Kubernetes deployment mechanics underneath — one way to run the service, not what the service is.

The decision spine

The spine is internal/authz. Every request reaches it and the handler dispatches on the X-Palonexus-Actor header — the headline path is agent egress, with north-south ingress as the foundation underneath it:

present → serveEgress (the agent on-ramp — may this agent make this outbound call, on behalf of this human, for this task, right now?)
absent → serveIngress (north-south, forwarded by Envoy’s external-authorization (ext_authz) filter)

Both paths call the same dependency packages in order:

Package	Concern	On failure
`internal/identity`	verify the bearer JSON Web Token (JWT) against the OpenID Connect (OIDC) JSON Web Key Set (JWKS)	`401` invalid credential
`internal/agentid`	verify the agent Verifiable Presentation (VP) (egress only)	`403` identity failure / mismatch
`internal/registry`	resolve the caller + target service	`403` unknown service / agent / target
`internal/policy`	inline rules, then an Open Policy Agent (OPA) veto (deny-overrides); egress adds allowlist + budget + delegation	`403` deny (or `401` needs-approval on egress)
`internal/audit`	append a hash-chained record of the outcome	—
`internal/metrics`	bump the decision counter + latency histogram	—

Read internal/authz/authz.go first — every other package is a dependency of it.

The request path, end to end

The diagram below traces a single request from the two entry points — a governed agent pod through the egress forward-proxy (the headline path), and a north-south client through the Envoy Gateway (the foundation underneath) — into the same /authz decision. Read it left to right: both paths converge on the :9191 decision listener, which runs the internal stages in order (identity → registry → policy → audit → metrics) and only forwards to the upstream on an allow (the bold edge). The dashed edges are the two identity sources the decision consults but does not embed: the enterprise identity provider (IdP, OIDC) supplies human sign-in keys (JWKS) and the workforce directory (Logto), while agent-idp verifies each agent’s Verifiable Presentation. The :8181 management API sits beside the hot path so operators and CI can read the registry, audit, and metrics without touching the decision listener.

flowchart LR
  agent([Authority-bound agent pod])
  client([North-south client])

  proxy["Egress forward-proxy :9092"]
  gw["Envoy Gateway<br/>SecurityPolicy.extAuth"]

  subgraph cp["Control plane — one Go binary"]
    dec{{":9191 /authz decision"}}
    id["identity: verify JWT / VP"]
    reg["registry: resolve caller + target"]
    pol["policy: inline rules + OPA veto"]
    aud["audit: hash-chained record"]
    met["metrics: counter + latency"]
    mgmt[":8181 management API"]
  end

  idp[("Enterprise IdP / Workforce IAM<br/>OIDC · SCIM<br/>Logto")]
  aidp[("agent-idp<br/>did:web issuer, VCs")]
  upstream([Upstream: service / model / tool / peer])

  agent -->|HTTP_PROXY| proxy --> dec
  client -->|HTTP| gw -->|ext_authz| dec
  dec --> id --> reg --> pol --> aud --> met
  id -.JWKS.-> idp
  pol -.verify VP.-> aidp
  met ==>|allow| upstream

The two entry points (egress proxy and gateway ext_authz) converge on one /authz decision; identity is verified against the enterprise IdP (OIDC) and agent-idp (Logto is the first supported enterprise IdP), and only an allow reaches the upstream.

Design invariants

These hold across the whole decision service — do not break them:

Deny-by-default / fail-closed. Every unknown, every failure, every unreachable dependency denies. An unreachable OPA denies; a timed-out egress-approval hold transitions to expired (a deny).
Deny-overrides policy. Inline allow + OPA deny = deny.
Identity propagation, not token forwarding. On an allow the control plane stamps X-Palonexus-Subject / -Upstream (and -Actor / -Agent-DID on egress); upstreams trust the edge.
Verifiable authority trail. The hash chain is the integrity guarantee — each record is tamper-evident; /v1/audit/verify recomputes the chain and reports the sequence where it first breaks.
Same image everywhere. All behavior is env-driven (see Environment variables); the dev overlay simply removes the OIDC env vars to allow anonymous passthrough while policy still enforces public-vs-private from the registry.

Deployment mechanics (Kubernetes)

Everything below is how the decision service is deployed on Kubernetes — listeners, namespaces, network policy — not what it decides. Operational detail lives in Operating the control plane and Credential-Safe Action Enforcement (Ops).

Two listeners (plus the egress proxy)

The control plane runs two HTTP listeners, deliberately split so the data path can be locked down mesh-only while the management API is exposed separately:

Listener	Default addr	Purpose
Decision / ext_authz	`:9191` (`DECISION_ADDR`)	the `/authz` hot path the gateway calls
Management	`:8181` (`MGMT_ADDR`)	registry CRUD, `/v1/audit`, `/v1/egress/requests`, `/metrics`, `/healthz`, `/readyz`

A third listener — the egress forward-proxy — is started only when AGENT_IDP_URL is set (it needs the IdP to verify agent identities):

Listener	Default addr	Purpose
Egress proxy	`:9092` (`EGRESS_PROXY_ADDR`)	a standard HTTP forward proxy that runs the same egress decision before forwarding any outbound agent call

The egress proxy is fronted by the egress-proxy.palonexus.svc:80 Service; agent pods are pinned to reach only it. See Credential-Safe Action Enforcement.

                       ┌──────────────────────────────────────────┐
                       │  CONTROL PLANE  (one Go binary)            │
                       │                                            │
  agent pods ──────────▶  :9092  egress forward-proxy (same decision)
                       │                                            │
  gateway ──ext_authz──▶  :9191  /authz   (decision hot path)       │
                       │                                            │
  operators / CI ──────▶  :8181  registry · audit · egress · /metrics
                       └──────────────────────────────────────────┘

For the precise routes on each listener, see the HTTP API reference.

Namespaces and trust zones

The platform deploys into three namespaces, each a trust boundary:

Namespace	Contents	Role
`palonexus`	control-plane, OPA, Dex, OpenTelemetry (OTel) collector, model-broker, portal, egress proxy	the control layer
`apps`	the authority-bound agents, upstream services, runbooks-api, incy	the workloads being governed
`observability`	Grafana LGTM (Tempo / Prometheus / Loki)	telemetry sink

agent-idp runs in its own agent-idp namespace so its did:web issuer Decentralized Identifier (DID) resolves at a stable in-cluster name (did:web:agent-idp.agent-idp.svc).

NetworkPolicy is part of the design, not an afterthought. Agent egress is confined to DNS + agent-idp:8090 + egress-proxy:80 only — the direct paths to the model-broker, runbooks-api, and peer agents are removed, so nothing reaches a target except through the proxy (which routes it through /authz). The Envoy Gateway is the only component intended to take external client traffic, and every request through it is gated.

Consoles

PaloNexus deliberately splits its UI into focused portals. None is exposed to the public internet. Each is reachable only over the organization’s Tailscale tailnet (the production path) or via kubectl port-forward (the local fallback). make port-forward opens all of them at once.

Portal	In-cluster	What it’s for
Control-plane console	`svc/portal:3000` (ns `palonexus`)	the operator cockpit — the tabs below
Grafana (LGTM)	`svc/lgtm:3000` (ns `observability`)	traces with DID / Verifiable Credential (VC) attributes (Tempo), decision/latency/token/cost metrics (Prometheus), audit/log search (Loki)
Incy (optional backdrop)	`svc/web` (ns `incy`)	a realistic site-reliability-engineering (SRE) incident-management app the agents can act against

Control-plane console — the tabs

Tab	Shows	Backed by
Overview (Authority Command Center)	the verifiable-authority-trail badge (live hash-chain verify), the agent fleet joined to accountable owners/departments, a live enforcement feed with deciding-layer + delegation chips, allow/deny counters	`/v1/audit` + `/v1/audit/verify` + `/metrics`, agent-idp `/v1/governance/summary`
Registry	every service / agent / model / tool: kind, allowlists, budgets, scopes, data-class	`/v1/registry/services`
Decisions	allow-vs-deny by target + a live decision table	`/v1/audit`
Authority Trail	the hash-chained log + Verify chain (tamper-evidence)	`/v1/audit`, `/v1/audit/verify`
Identity	the did:web issuer anchor + each agent’s did:key, capabilities, delegations, revocations	agent-idp `/v1/issuer`, `/v1/agents`, `/v1/delegations`, `/v1/revocations`
Authority Delegation	the human-in-the-loop console — Approve / Deny pending delegations, Revoke active ones	agent-idp delegation + revoke APIs
Credential-Safe Enforcement	held egress requests (actor DID, target, action, resource, reason, countdown) with Approve / Deny	`/v1/egress/requests` (+ `/approve`, `/deny`)
Agents	per-agent identity (`did:key`) + allowlist / budget + what was delegated, by whom, when it expires + usage	aggregated control-plane + agent-idp
Traces	embedded Grafana Tempo Explore for DID/VC-tagged spans	Grafana (`GRAFANA_PUBLIC_URL`)

The Overview tab is the Authority Command Center: one screen answering, for the whole fleet, which agent acted, on whose authority, who approved it, was the approver entitled, what credential was issued, and was it later revoked — a live hash-chain-verified badge over the authority trail, the fleet joined to its accountable owners via the SCIM directory, and an enforcement feed naming the deciding layer on every record. How to read each panel is documented in Operate the Command Center.

The Authority Delegation and Credential-Safe Enforcement tabs are the two human-in-the-loop surfaces: Authority Delegation resumes a delegation (the regulated DID/VC runbook gate); Credential-Safe Enforcement resumes a held network call at the egress proxy. Both poll every few seconds and resume the waiting decision on approve.

The same console also carries the two enterprise-IAM surfaces — Directory and Governance — documented under Connect agents to enterprise authority. The Governance tab is where accountable ownership and the revocation cascade are visible: owners, sponsors, risk and lifecycle per agent, plus delegation authority and token exchange.

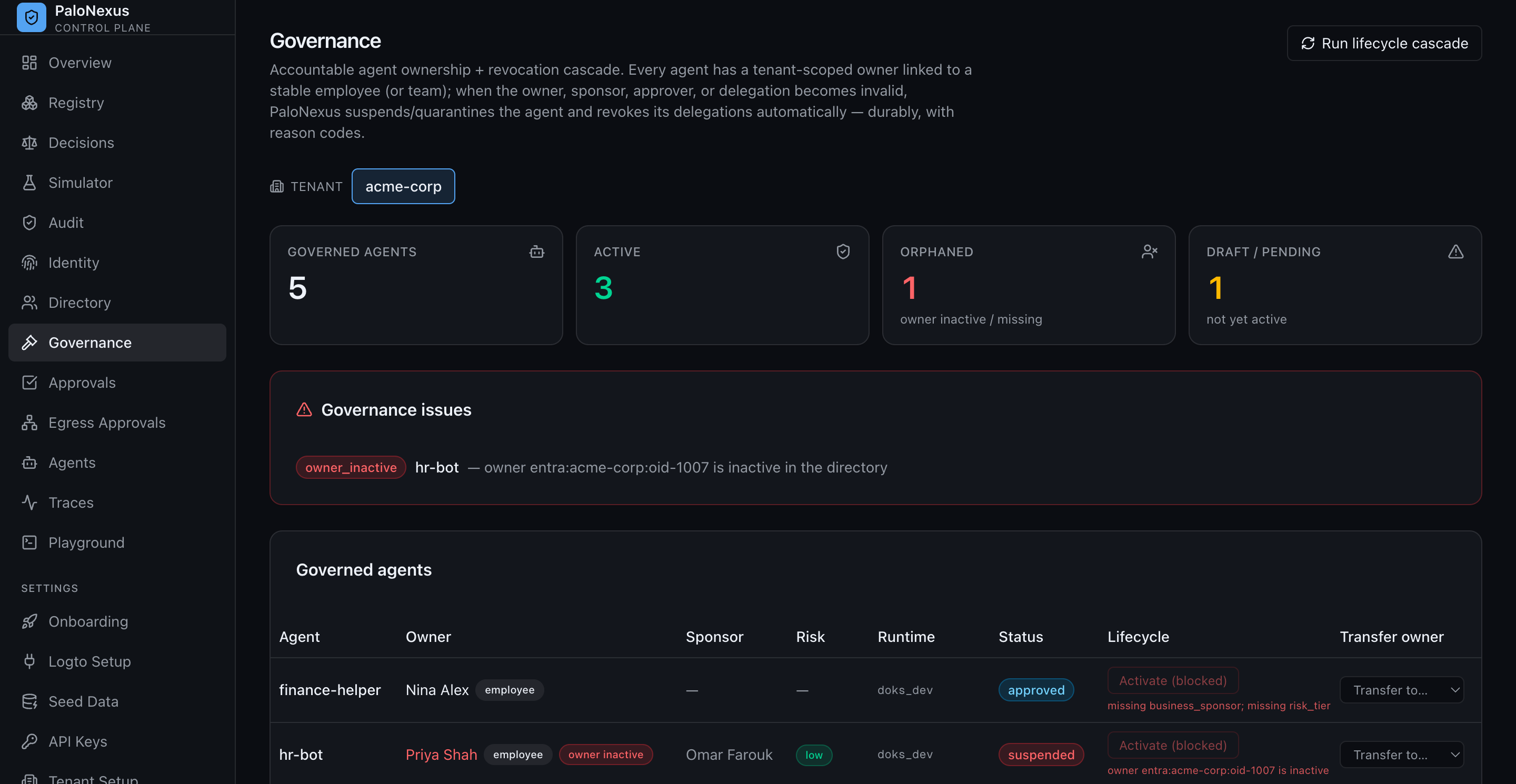

Governance console for tenant acme-corp showing five governed agents (three active, one orphaned, one draft), a governance-issue alert that hr-bot's owner is inactive, a governed-agents table with owner, sponsor, risk and lifecycle columns, and delegation-authority and token-exchange panels

The Governance console: accountable agent ownership and the revocation cascade — owners, sponsors, delegations, and short-lived token exchange in one place.

The Decisions tab derives an allow-versus-deny breakdown per target straight from the audit trail — every bar is a real ext_authz verdict:

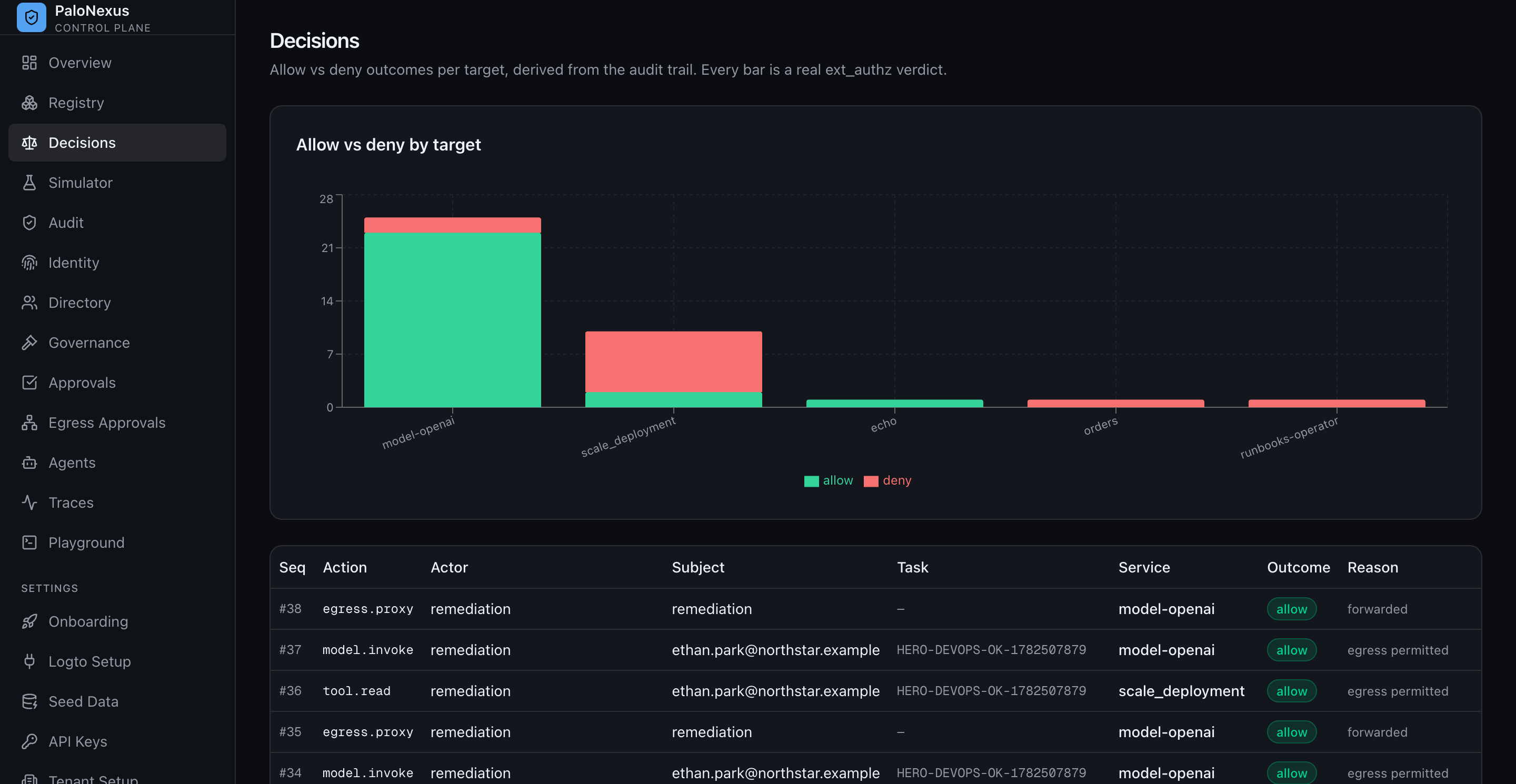

Decisions view with an allow-versus-deny bar chart per target (model-openai, scale_deployment, echo, orders, runbooks-operator) above a detailed table of every ext_authz verdict with actor, subject, task, outcome and rule

The Decisions console: allow versus deny per target, derived from the audit trail — every bar is a real ext_authz verdict.

Screenshots of each tab live in docs/walkthrough/ in the platform repo (e.g. 01-overview.png, 04-audit-verify.png, 05-approvals.png, 05b-egress-approvals.png, 06-identity.png, 08-traces.png).

Grafana (LGTM)

A single-binary grafana/otel-lgtm deployment bundles Tempo, Prometheus, and Loki. The control-plane and agent-idp emit OTLP spans carrying DID / VC attributes (did, vcJti, decision), so a single agent task shows its model + tool + agent-to-agent (A2A) hops on one timeline, each decided at the same /authz (“one trace, three gates”). The portal’s Traces tab embeds the Tempo Explore view.

Exposure model

Tailscale is the intended access path. The portal and incy ship Tailscale node manifests; set TS_AUTHKEY (a Secret) to join them to the tailnet. If the auth key is absent the deploy still succeeds — a failed/absent tailnet never blocks the platform.
Port-forward is the always-available local fallback (make port-forward): portal :3000, control-plane mgmt :8181, egress /authz :9191, agent-idp :8090, Grafana :3001.
The Envoy Gateway (north-south data plane) is a LoadBalancer Service — the only component intended to take external client traffic, and every request through it is gated by /authz.
